Details
Standard Circadian Cabinet for Mice
Model PT2-CCM1
Mouse Circadian Cabinets with Data Rails
Model PT2-CCM2
Mouse Circadian Cabinets for Wireless Sensor
Model PT2-CCM3
Rat Circadian Cabinets for Wireless Sensor
Model PT2-CCR3

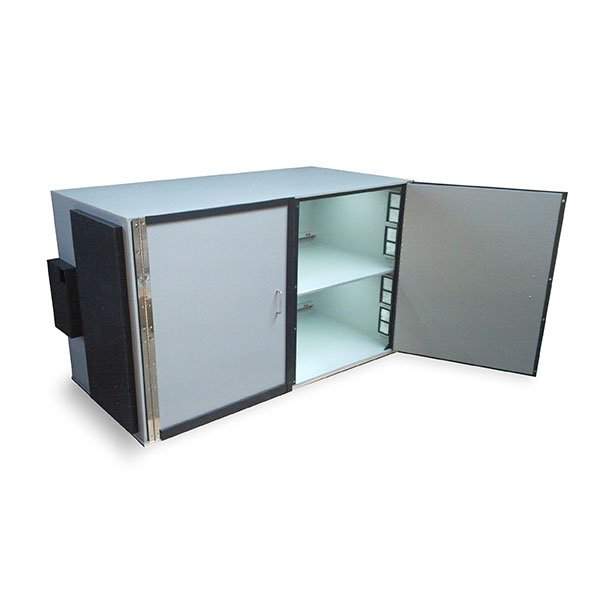

Phenome Technologies' flagship product is the circadian cabinet. Each cabinet can be customized to work with your computerized tracking system, or directly work with Actimetrics Clocklab data collection and Chamber Control software. Standard features include LED lighting and rails for collecting wheel cage data. Cabinets are easily cleaned and accessed, and can be modified to accomodate different equipment. In addition, we build rat and mice wheel cages for behavioral studies.
- Available in sizes to accommodate standard rat or mouse cages
- Light-tight
- Easily cleaned
- Fully ventilated and filtered to meet Federal standards
- Programmable LED lighting
- Built-in connectors for running wheels or motion sensors
- Temperature, humidity and light level sensors
- Optional temperature control
- Stackable
- Fully integrated with ClockLab Data Collection and Chamber Control software
Specifications
Material
PVC II
Air Exchange
19.6 cfm
Lighting
Light Emitting Diodes (LED)
LED Lighting Color
White or Green
LUX
1,000 max
Cleaning Solution
10% Bleach Solution
Mouse Cabinet
Outer Dimensions (width x height x depth)
- 43.5" x 23.5" x 23.75" (110.5 cm x 59.69 cm x 60.33 cm)
- Add 1.25" (3.2 cm) to depth for door handles.
Inner Dimensions (width x height x depth)
- 42.5" x 20.5" x 18.75" inches (107.95 cm x 52.07 cm x 47.63 cm)
- Shelf Height: 10" (25.4 cm) (9.7" from floor to light panel)
Number of Cages
- Six (6) cages per shelf
- Twelve (12) cages per cabinet
Rat Cabinet
Outer Dimensions (width x height x depth)
- 37" x 30.5"x 29" inches (93.98 cm x 77.47 cm x 30.25 cm)
- Add 1.25" (3.2 cm) to depth for door handles.
Inner Dimensions
- 36" x 28.5" x 24" (91.44 cm x 72.39 cm x 60.69 cm)
- Shelf Height: 14 inches (35.56 cm)
Number of Cages
- Three (3) cages per shelf
- Six (6) cages per cabinet
