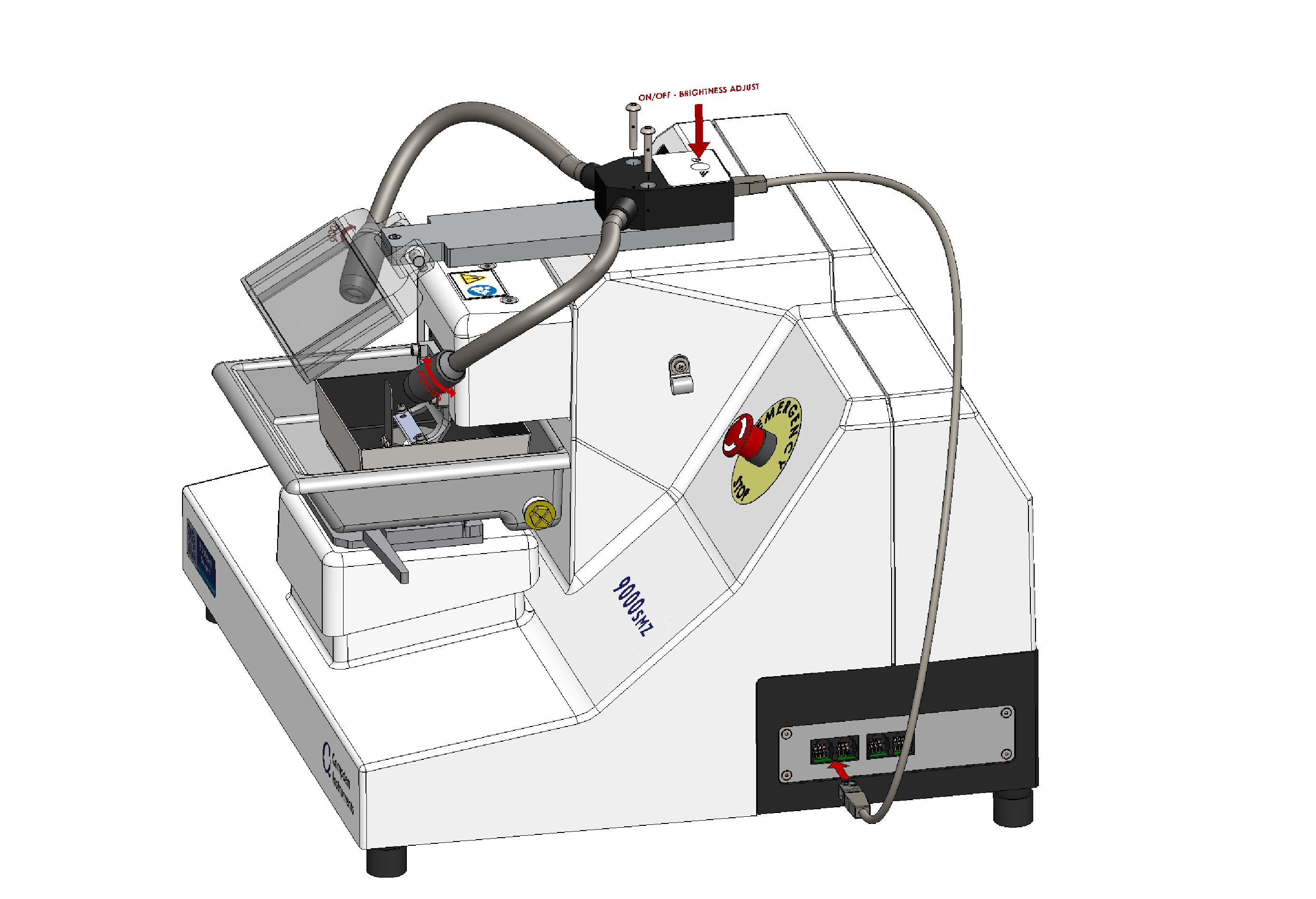

The 9000SMZ Instrument may be (optionally) supplied with a LED cold light source. The light source should be fixed to either the top of the instrument cover or may be fixed to the top of to the magnifier mounting bracket. The screws supplied with the light Source should be tightened using the 2.5mm hexagonal driver supplied in the Toolkit. Do not over-tighten the screws. The Light Source is powered via the RJ11 connection. The light Source may be plugged into any of the four available ports on the side of the 9000SMZ.
The light source can be switched on/off and the light intensity controlled via a sequential pressing of the button on top of the body of the light source. A brief press will switch the unit On or Off, whilst a sustained press will cycle through the light intensities available. Once the preferred light intensity is reached, release the button. The unit will remember the chosen intensity for the next use. The output beams may be focused by rotating the lens ferrule at the end of each flexible arm.
18.2 Magnifier
The 9000SMZ Instrument may be (optionally) supplied with a low power magnifier (2x magnification).

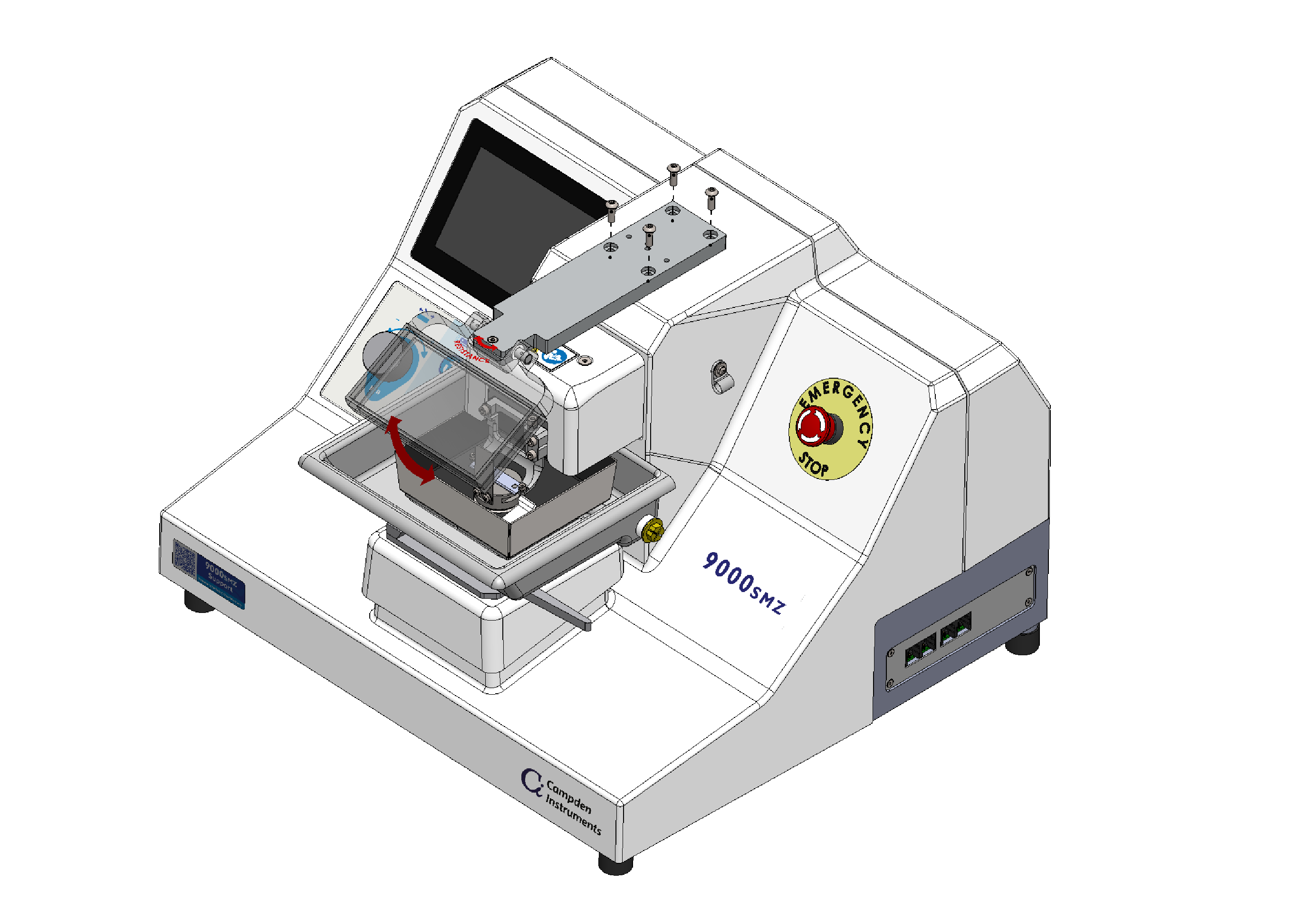

The magnifier is to be fixed to the top of the instrument cover using the screws provided. The screws should be tightened using the 2.5mm hexagonal driver supplied in the toolkit. Do not over-tighten the screws.
To ease the lens' resistance to the inclination adjustment, loosen the tightening screw using the (2.5mm hexagonal driver supplied in the toolkit), and pivot the lens as required. Re-tighten the screws once in the optimal position.
The optional Cold Light Source may be fitted on top of the Magnifier as shown in 15.1.
18.3 Microscope Mounting Point
A microscope can be attached to the instrument with four bolts to the dedicated mounting area on the base casting on the rear of the instrument, which ensures a rigid mount, rendering the microscope free from vibration. An adapter block can be purchased from Campden Instruments to use with an existing standard microscope assembly. Contact Sales for more information.
Note: The Campden cold light source (referenced in 18.1) can be fitted directly to the top of the 9000SMZ independently of the microscope. For ease of access, the light source should be fitted before fitting the microscope.
