Potential crush/Musculo-skeletal injury and risk of damage to equipment warning - when lifting the 9000SMZ onto a bench or moving the machine short distances, due to the high mass of the 9000SMZ, a two-person lift is required. |
|
|
Potential crush injury and risk of damage to equipment warning. Due to the high mass of the 9000SMZ care is to be taken by user that the machine is placed on a sturdy bench with a level non-slip surface. |
The unit should be placed on a sturdy bench. Although the unit has a very high static mass to vibrating mass ratio and absorbent rubber feet, a rigid support bench will enhance protection from secondary vibration transmission and maintain slice quality and consistency.
If any accessories - microscope/magnifier attachment or light source - have been supplied with the instrument, reference should be made in section 18 of this manual for the installation procedure.
The 9000SMZ will automatically adapt to the mains voltage of any country in which it is being used. No user intervention is required before the 9000SMZ is switched on.

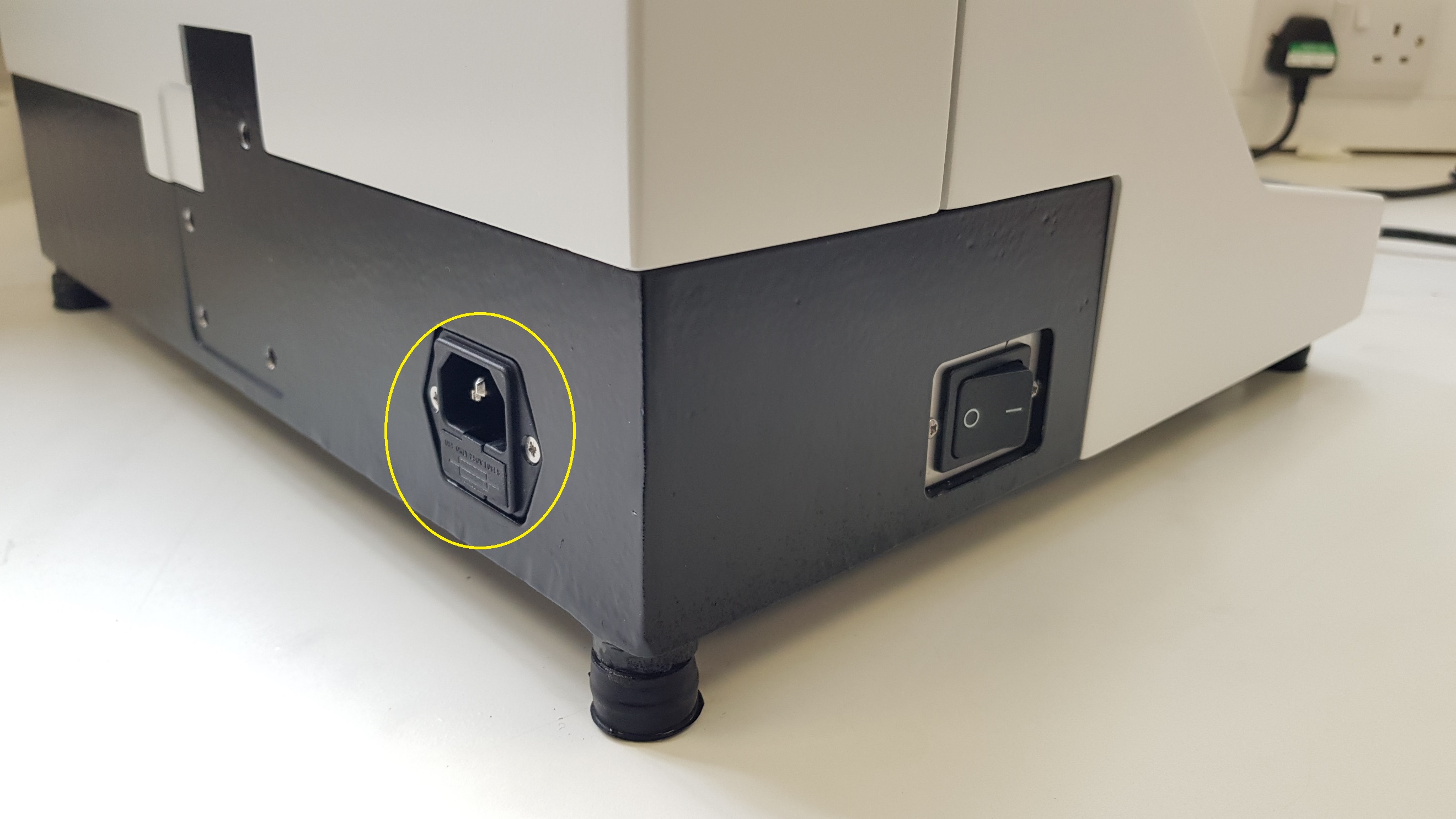

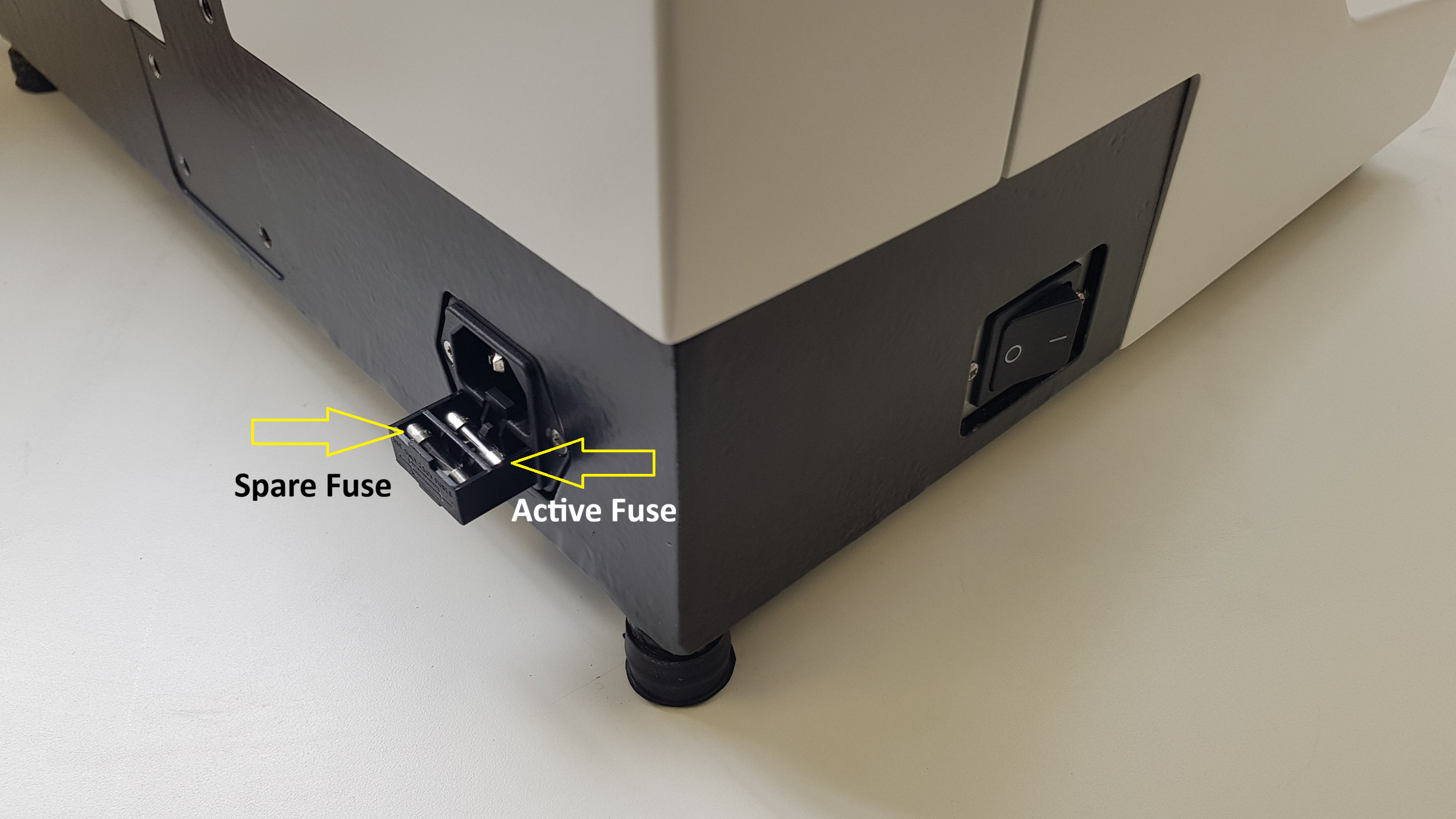

The IEC C14 power inlet socket is located at the rear-left of the instrument (see below) and is fused in line with CE safety standards. In the event of the fuse needing replacement, the fuse holder drawer may be prized open with a flat bladed screwdriver and the blown active fuse in the inner slot of the drawer replaced with the spare fuse in the outer slot of the drawer.
The IEC C14 power inlet socket accepts a standard IEC C13 plug. Where possible a standard mains lead suitable for the country of intended use will have been supplied with the instrument. The instrument must not be operated unless it is connected to a suitably earthed (grounded) mains supply.
